Technical Parameter:

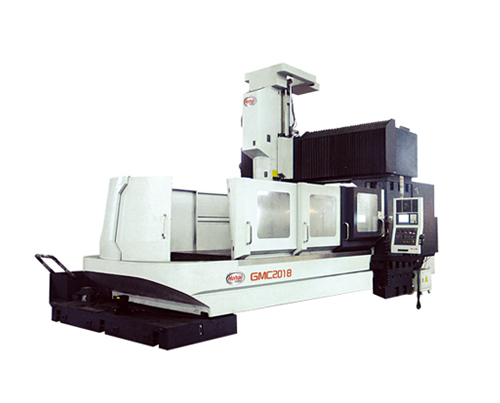

| Model | Unit | GMC2513 | GMC2018 |
| Workbench | |||
| Workbench (length * width) | mm | 2700*1100 | 2000*1400 |
| Workbench Z maximum load | kg | 8000 | 8000 |
| T-slot (number of slots * slot width * pitch) | mm | 7-22*150 | 7-22*200 |
| Processing range | |||
| Door width | mm | 1300 | 1800 |
| X-axis/Y-axis/Z-axis/stroke | mm | 2500/1300/800 | 2500/1800/900 |
| Distance from spindle end face to work table | mm | 120-920 | 150-1050 |
| Feed system | |||
| CNC system | FANUC Oi MD | FANUC Oi MD | |
| Rapid displacement of X/Y/Z axis | m/min | 12/12/10 | 12/12/10 |
| Z maximum cutting feed rate | m/min | 7 | 7 |
| Automatically switch to the system (CNC milling does not have this option) | |||
| Number of standard tools (pieces) | BT50/24 | BT50/24 | |
| Tool Z large knife warp / length | mm | Φ110/300 | Φ110/300 |
| Tool exchange method | 氣動(dòng) | 氣動(dòng) | |
| Z-large tool weight | kg | 18 | 18 |
| Precision | |||
| Positioning accuracy | mm | 0.021 | 0.021 |
| Repeatability | mm | 0.02 | 0.02 |
| Rail form | |||
| X-axis guide | Roller Linear Guide | Roller Linear Guide | |
| Y-axis guide | Roller Linear Guide | Roller Linear Guide | |
| Z-axis guide | Rectangular rail | Roller Linear Guide | |
| Spindle system | |||
| Spindle Specifications (Model/Installation Diameter) | BT50/Φ190 | BT50/Φ190 | |
| Spindle speed | r.p.m | 6000 | 6000 |
| Spindle motor power | kw | 15/18.5 | 22/26 |
| Air pressure | |||
| Air demand | kg/cm2 | ≥6 | ≥6 |
| Air source flow | m3/min | ≥0.5 | ≥0.5 |
| Machine Specifications | |||
| Machine weight | kg | 19000 | 19000 |
| Dimensions (L*W*H) | mm | 7150*3120*4130 | 5400*4050*3870 |
